4 Máy phát hiện khói dây
>

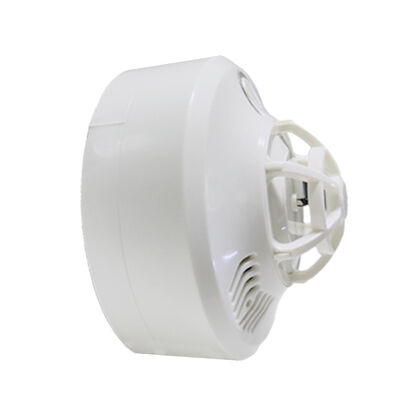

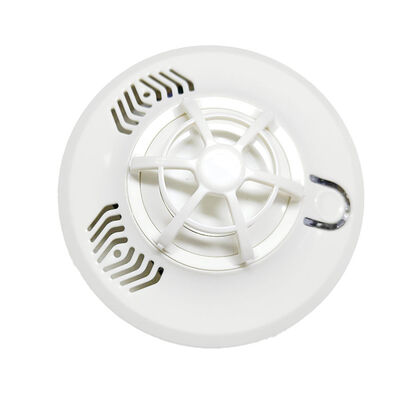

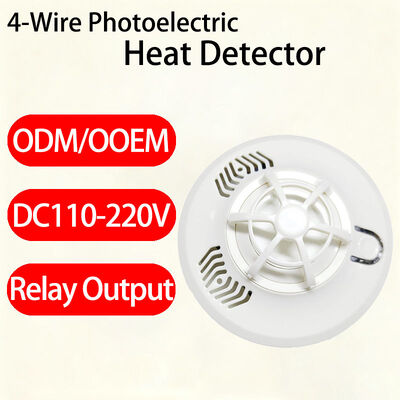

Electrical Cabinet & Server Room Heat Detector – Industrial-Grade, AC220V 4-Wire with Relay Output, Easy Integration with Existing Control Panels, Compact Design for Space-Limited Installations

Electrical Cabinet & Server Room Heat Detector – Industrial-Grade, AC220V 4-Wire with Relay Output, Easy Integration with Existing Control Panels, Compact Design for Space-Limited Installations

Tên thương hiệu: XHA
Số mẫu: XHA8023
MOQ: 1 cái
Giá cả: negotiable
Chi tiết bao bì: 100pcs/carton
Điều khoản thanh toán: T/T, Công Đoàn Phương Tây
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
CE
Loại sản phẩm:
Máy dò nhiệt 4 dây có đầu ra rơle
Độ ẩm:
≤95%
Kích hoạt nhiệt độ:
62°C
Năng lực liên lạc:
6A 250VAC | Yêu cầu tùy chỉnh
Mức áp lực âm thanh:
Trên 80dB
Ứng dụng:
Hệ thống an ninh, thiết bị kiểm soát công nghiệp
Xếp hạng điện áp hoạt động:
AC 220V
đầu ra:
Âm thanh và ánh sáng, đầu ra Relay
Khả năng cung cấp:
10000 chiếc / tháng
Mô tả sản phẩm

AC220V Power Cabinet Machine Room 4-Wire Heat Detector With Relay Output For Fire Safety System



Electrical Cabinet & Server Room Heat Detector – Industrial-Grade, AC220V 4-Wire with Relay Output, Easy Integration with Existing Control Panels, Compact Design for Space-Limited Installations 0



Introduction

220V AC Power 4-Wire heat alarm with relay output is common used for industrial control equipment, power cubicle, charging pile, alarm bell etc fire warning system. This smoke alarm has the characteristics of high sensitivity, stability and reliability, small power consumption and durability. Easy to install.


Parameters


Product Name smoke detector with relay output Rated operational voltage AC220V
Sound pressure level ≥80db Static current ≤2mA
Alarm current ≤85mA Work temperature -10°C~+50°C, Humidity≤95%.
Output Sound&light alarm, relay output Contact Capacity 6A 250VAC


Functions

Self-test: Press the self-test button, the detector sends out the audible and visual alarm signal, and the relay operates. When the self-test button is released, the audible and visual alarm signal is restored and the relay is restored.
High temperature alarm: Under normal monitoring conditions, the detector indicator flashes every 5 seconds. When the temperature reaches or exceeds the alarm threshold, the detector indicator light is on, the buzzer sends the alarm sound signal, and the relay operates.
Alarm recovery: The alarm state will be maintained, press the self-test button for 2 seconds after release, the detector can be restored to the normal monitoring state



Installation

First drill two mounting holes with a diameter of 5mm on the ceiling 52~ 62.5mm apart. Fix the alarm base with the plug and screw. Then connect the power line and output line.install the alarm to the base in the correct direction. Press down and tighten clockwise, finally turn on the power, it works.

Electrical Cabinet & Server Room Heat Detector – Industrial-Grade, AC220V 4-Wire with Relay Output, Easy Integration with Existing Control Panels, Compact Design for Space-Limited Installations 1

Product range

Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector



Service

1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.

5. Welcome sample order.
